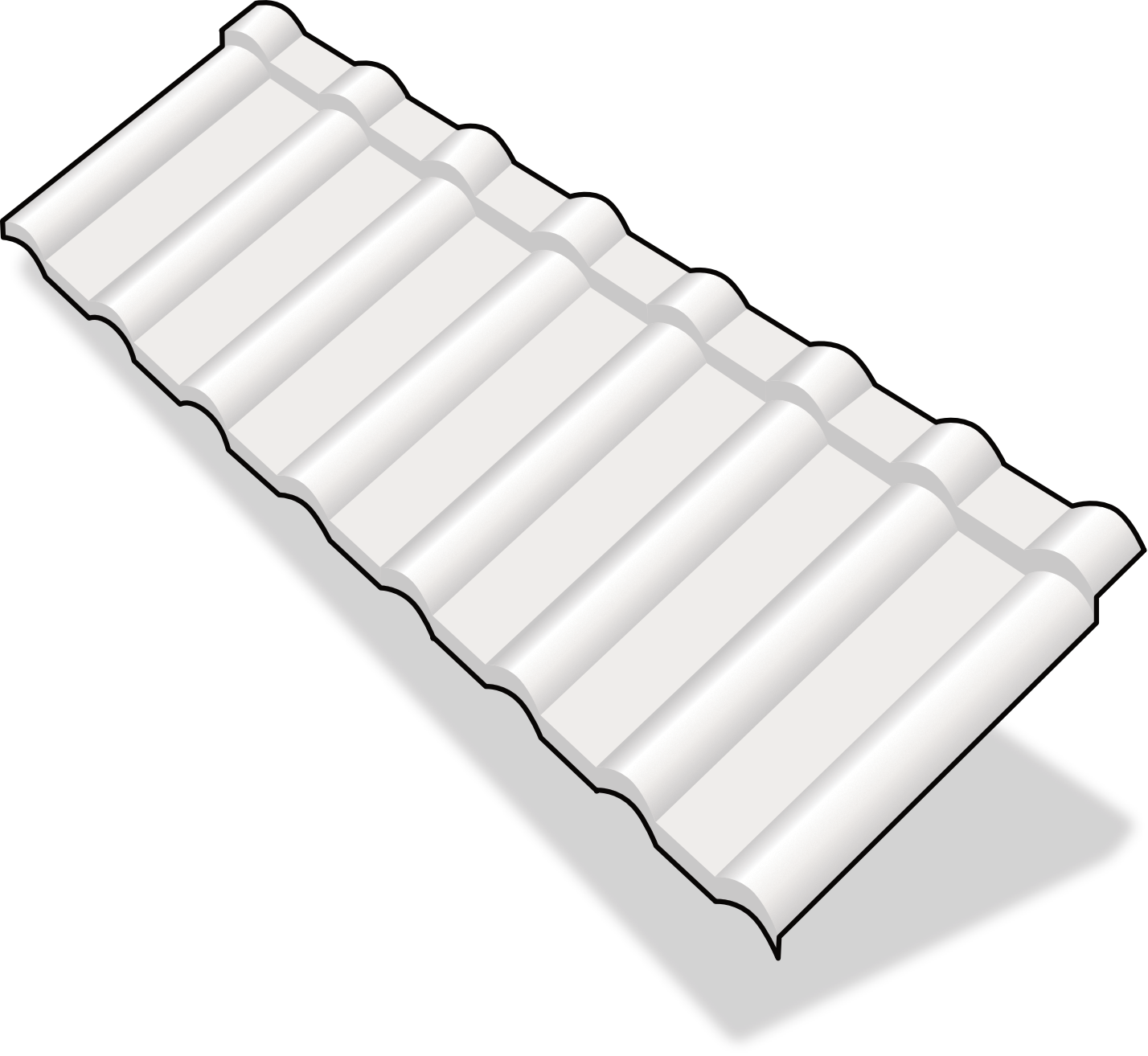

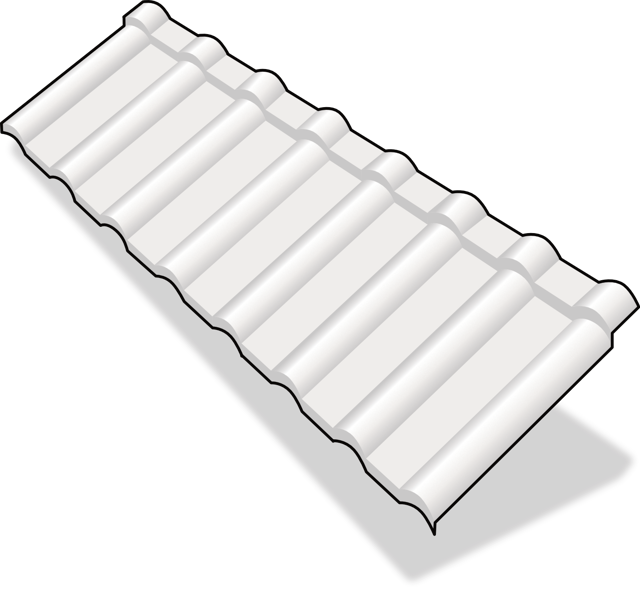

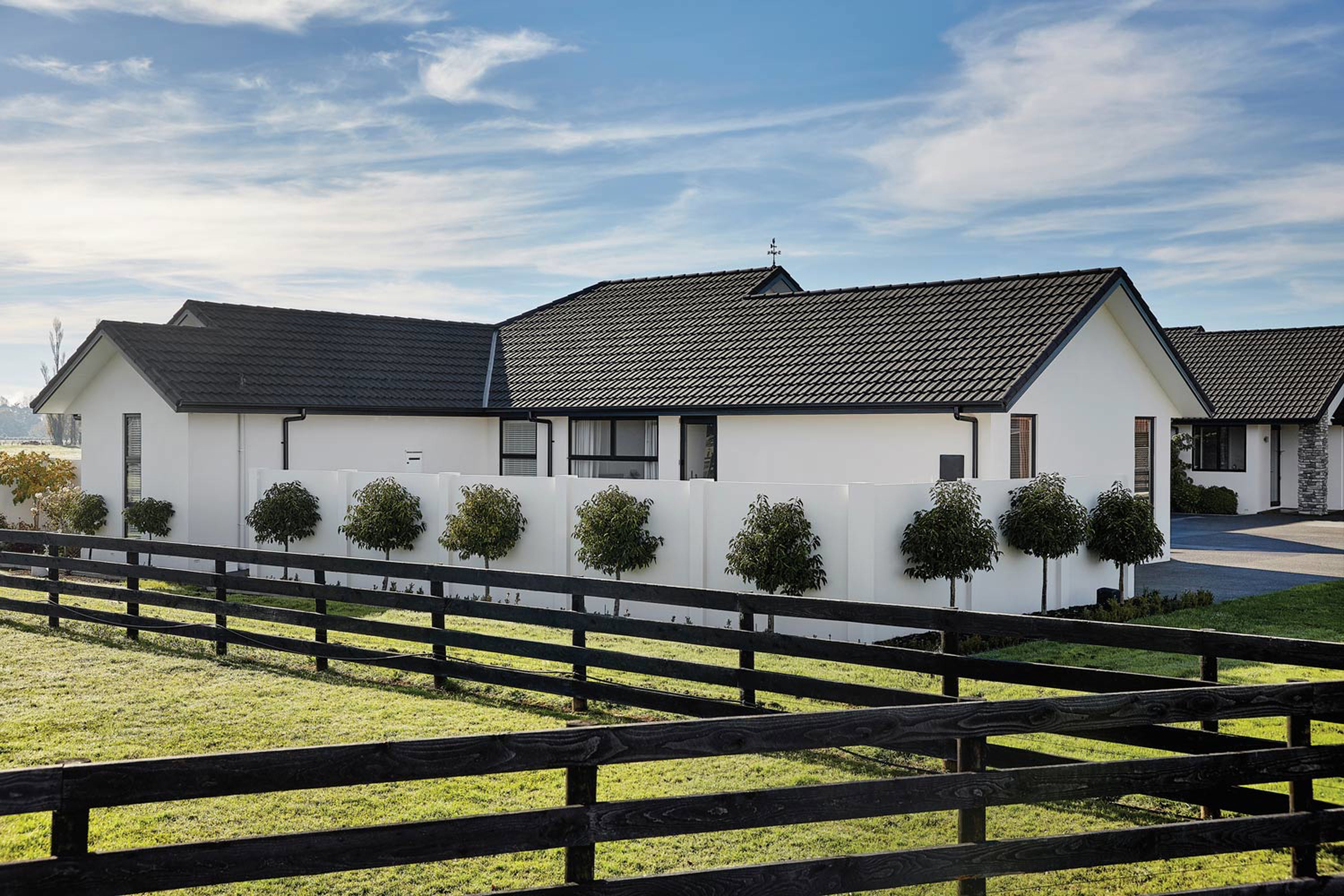

Balanced arches and flats create a perfectly elegant, classical looking roof. This timeless profile makes a strong statement, especially on steeply pitched roofs.
Milano

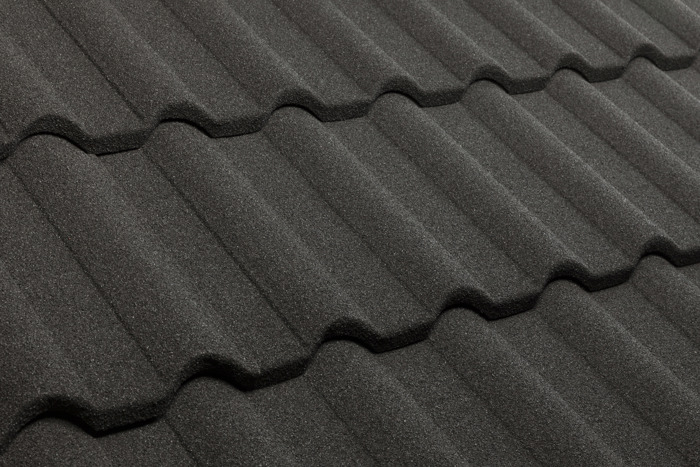

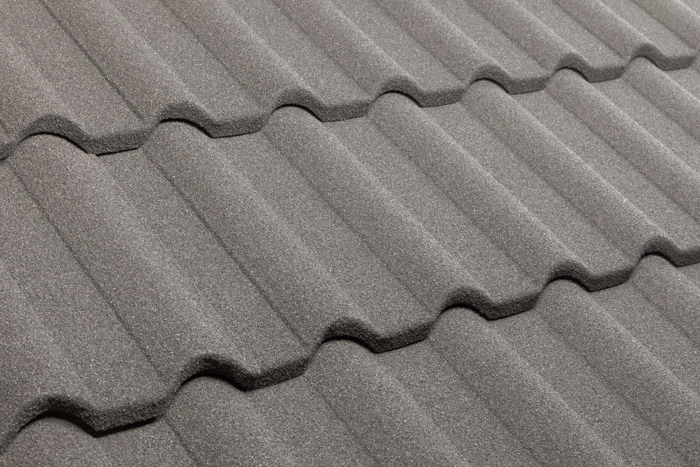

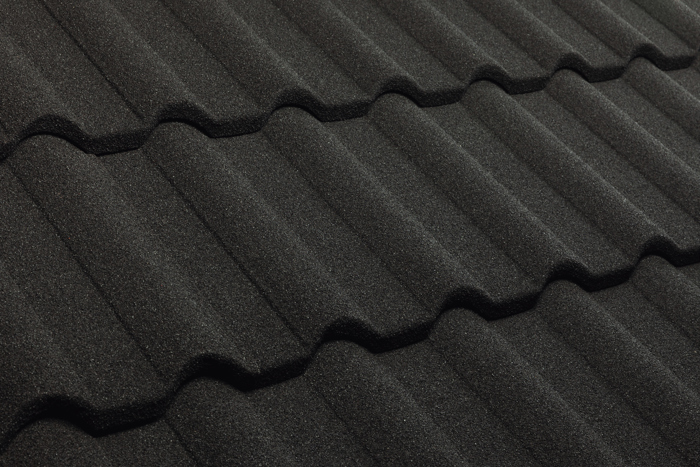

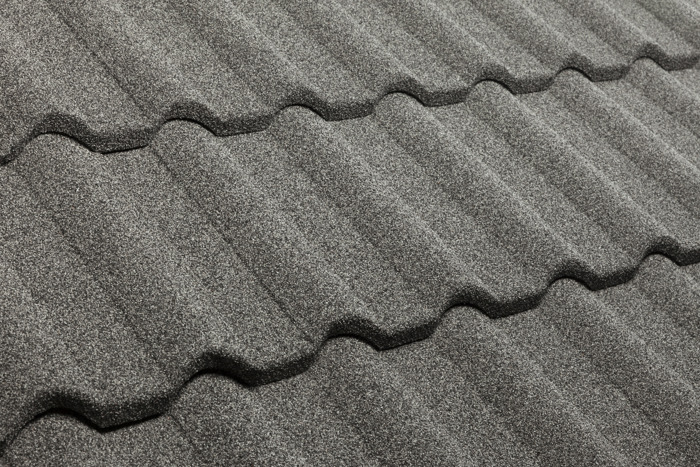

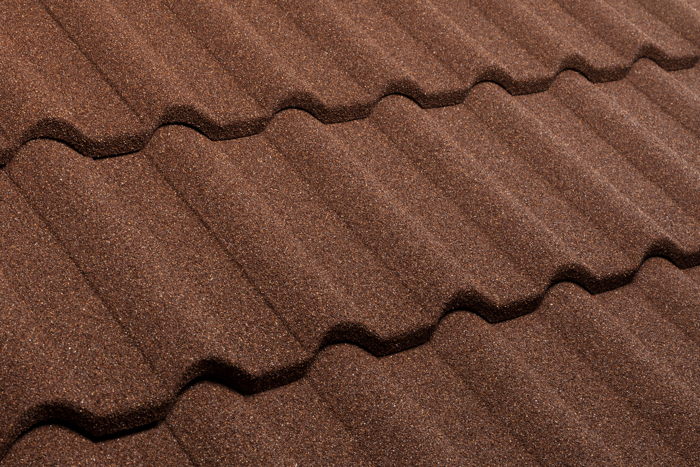

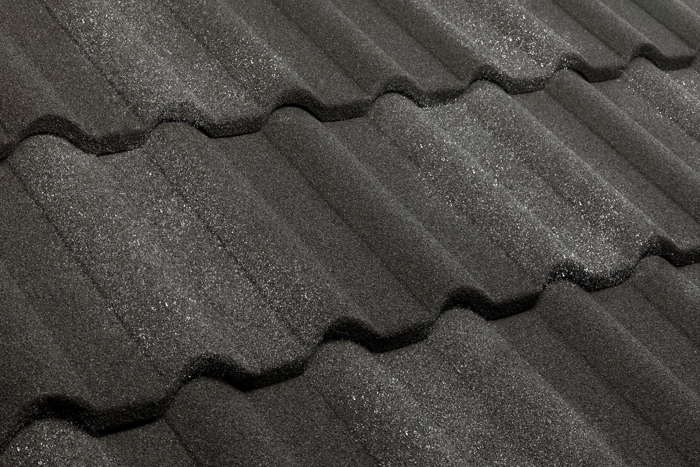

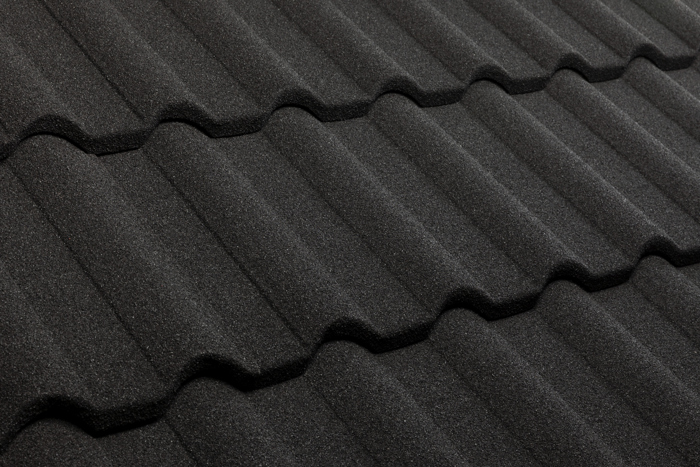

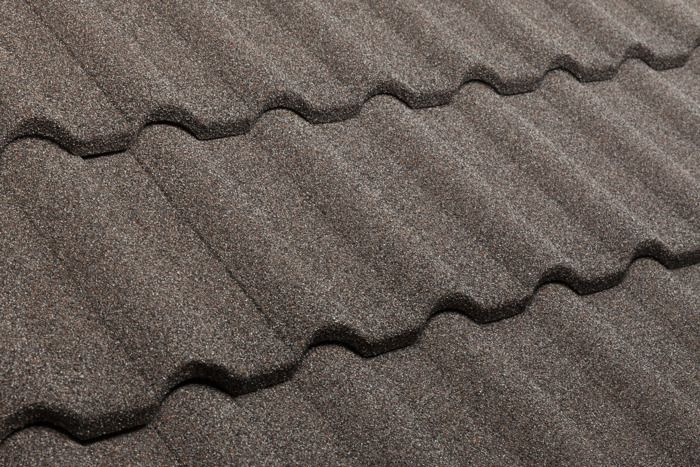

Textured
*Colours are as close to the actual products as possible. There may be slight variations due to screen settings.



Product Specifications
- Overall Length
- 1330 mm
- Overall Width
- 410 mm
- Length of Cover
- 1210 mm
- Width of Cover
- 368 mm
- Roof Cover / Tile
- 0.45 m2
- Tiles / m2
- 2.2
- Weight / Tile
- 2.9 Kg
- Weight / m2
- 6.4 Kg
- Minimum Pitch
- 12 Degrees
Technical documents
-
E2 Valley Detail
-
Milano - Eave / Fascia Detail
-
Milano - Gable / Barge - Angle Trim - Steel Fascia Detail
-
Milano - Gable / Barge - Barrel Trim - Steel Fascia Detail
-
Milano - Gable / Barge - No Trim - Steel Fascia Detail
- View all CAD Files View all technical docs

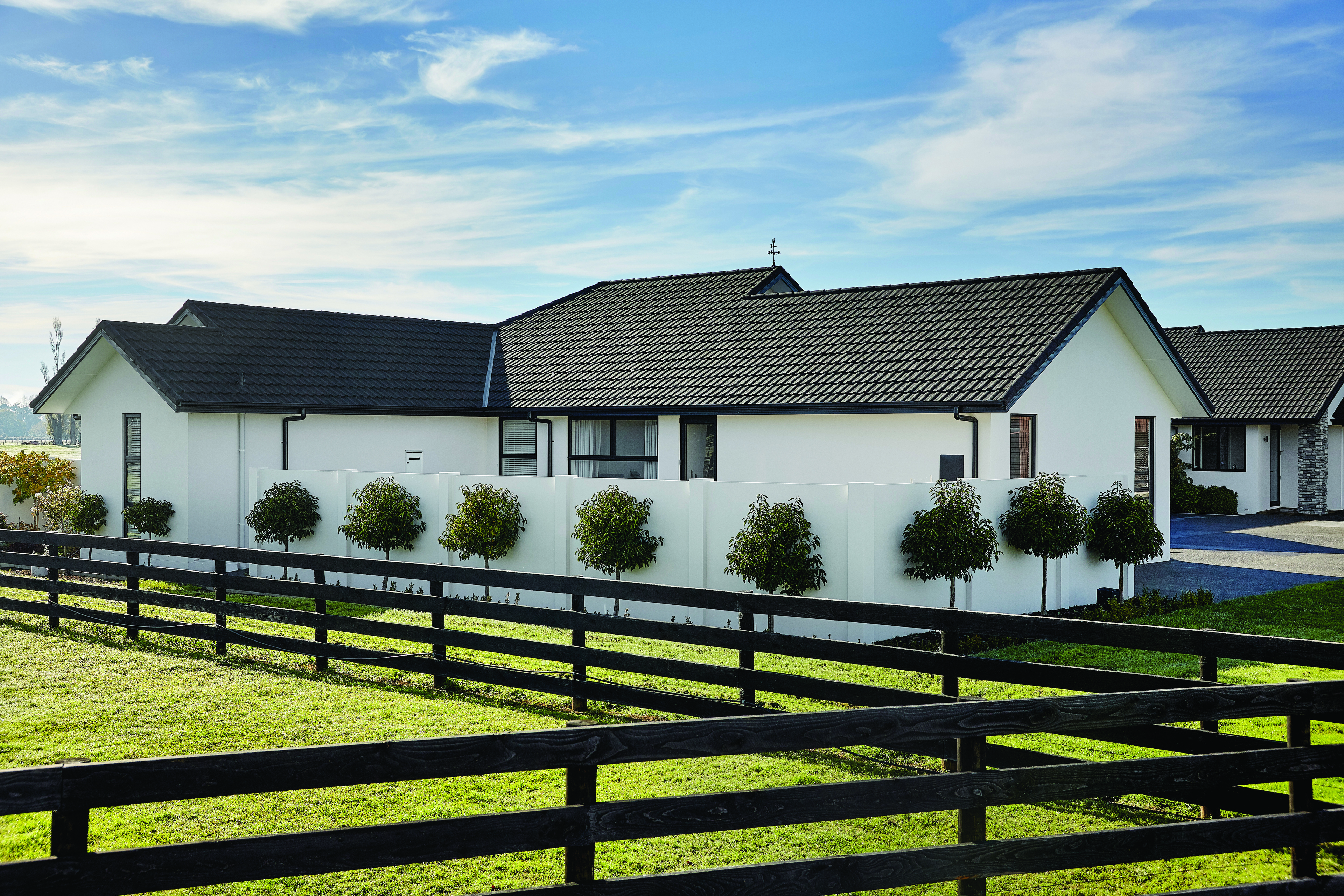

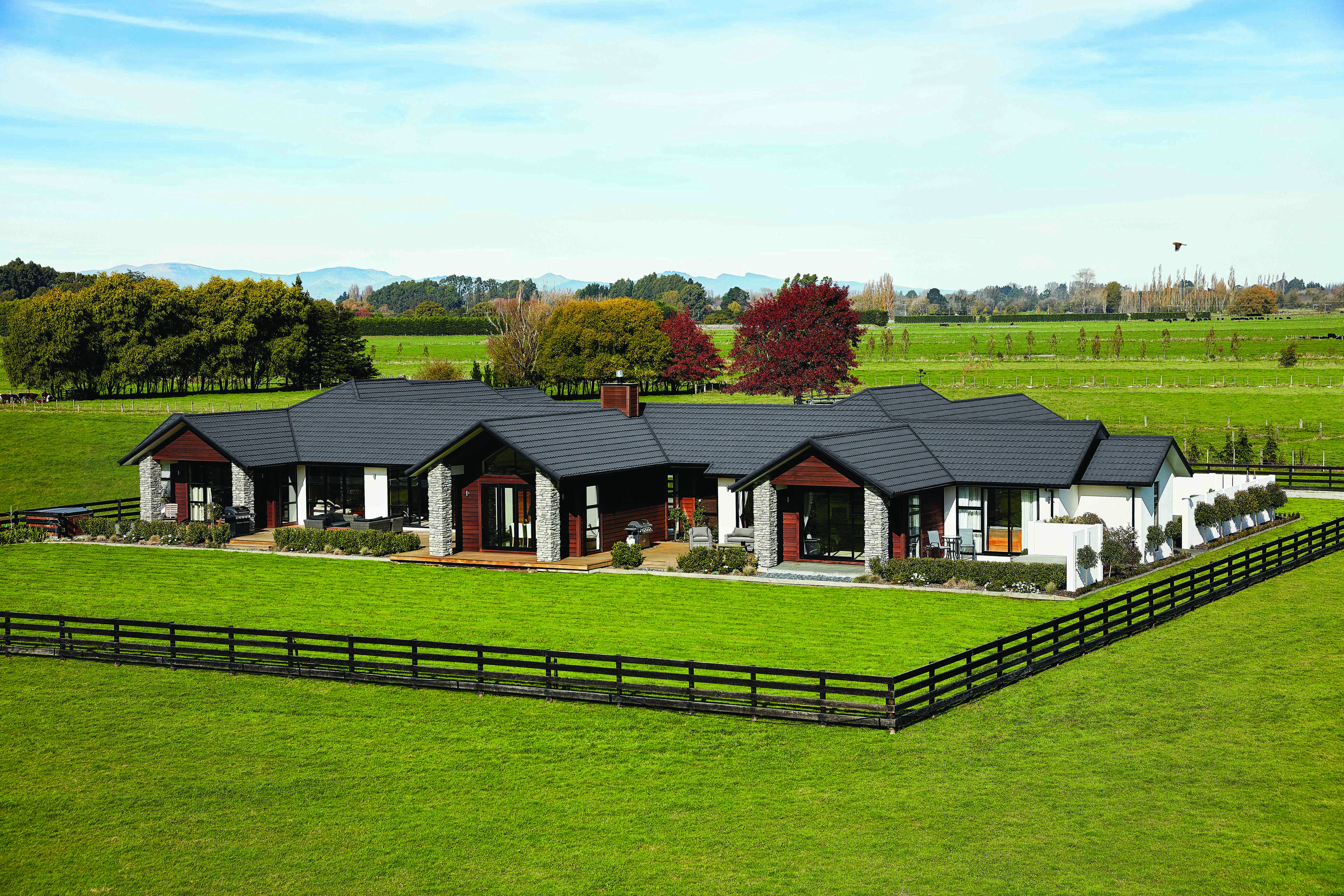

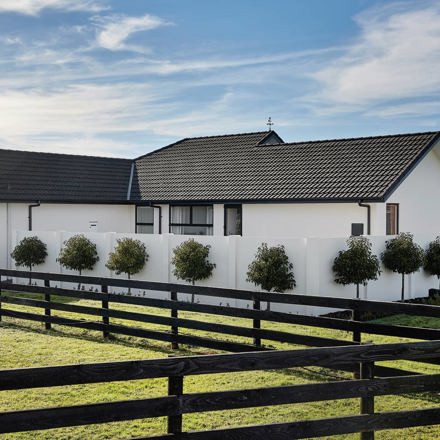

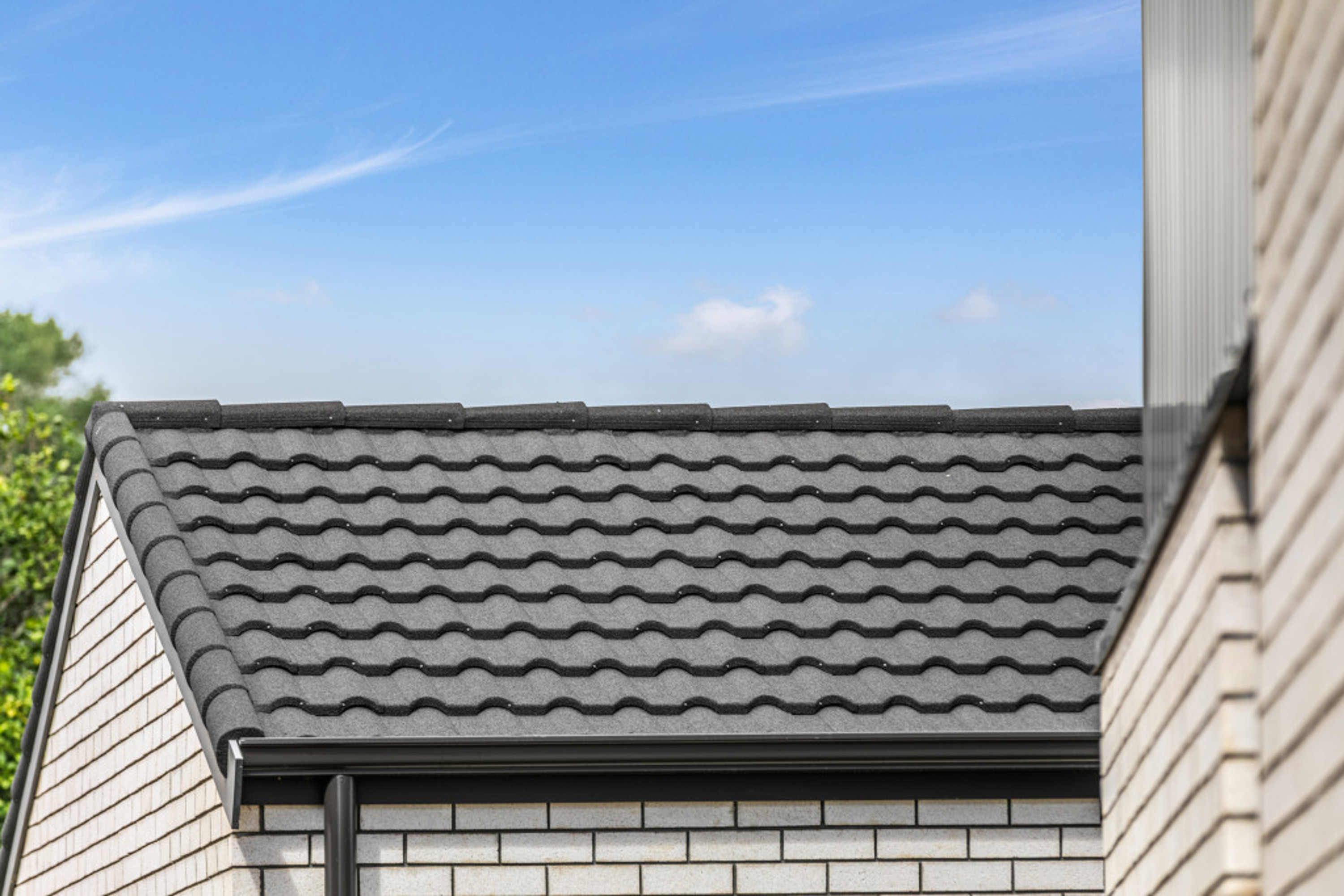

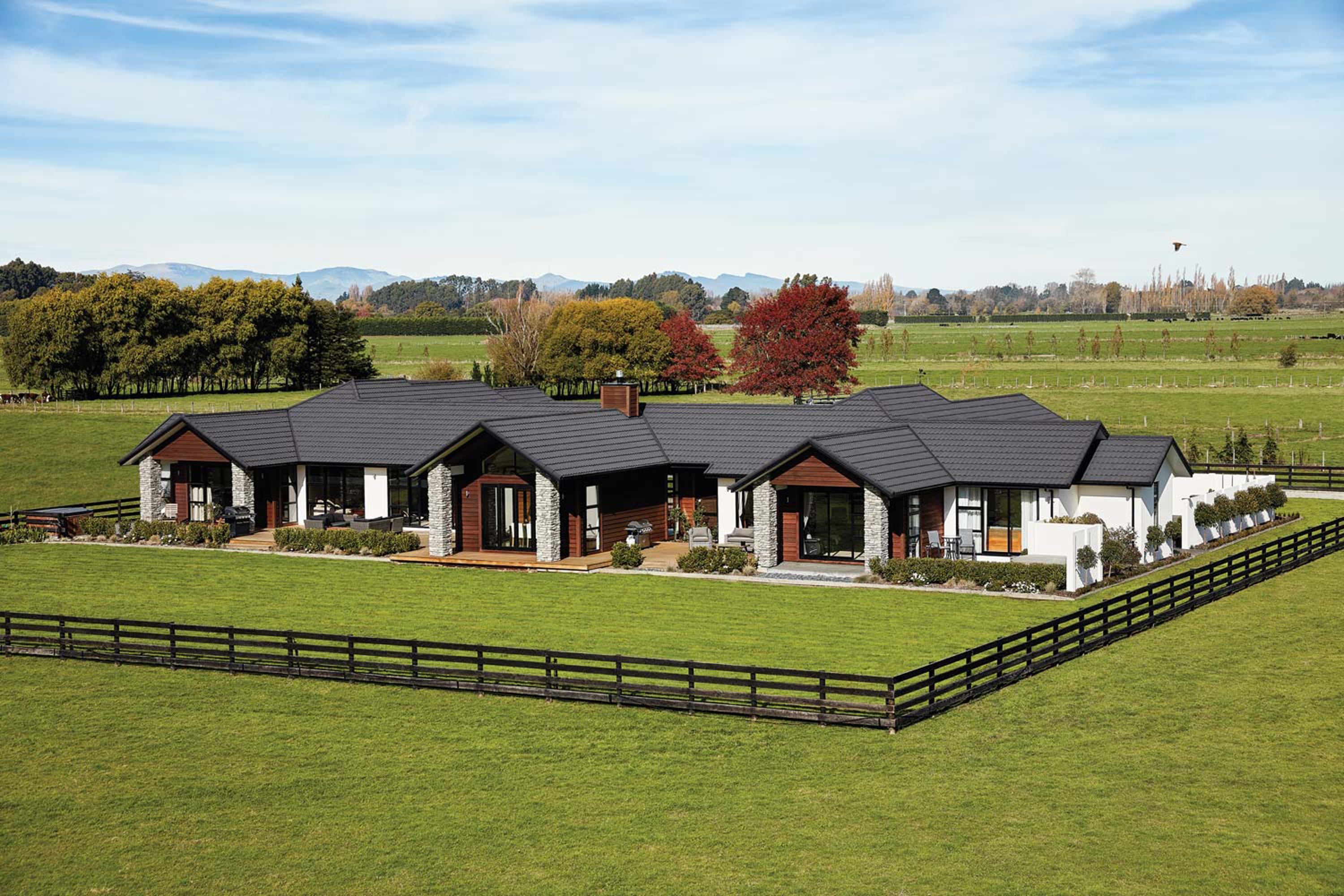

Be inspired
