CF Slate has the lowest profile out of all our tiles and achieves a sleek look with subtle charm from variations in light and shade. With its exceptional durability, a CF Slate roof offers superior performance and all the advantages of stone-coated steel. CF Slate comes in a choice of natural weathered tones to recreate the visual appeal of timber, asphalt or fired-clay shingles. Featuring our Concealed Fastening technology, fixings are completely concealed from external weather conditions, removing the risk of nails rusting and water ingress. There are also no visible nails or screws leading to a beautiful, clean finish.
CF Slate
Textured
-

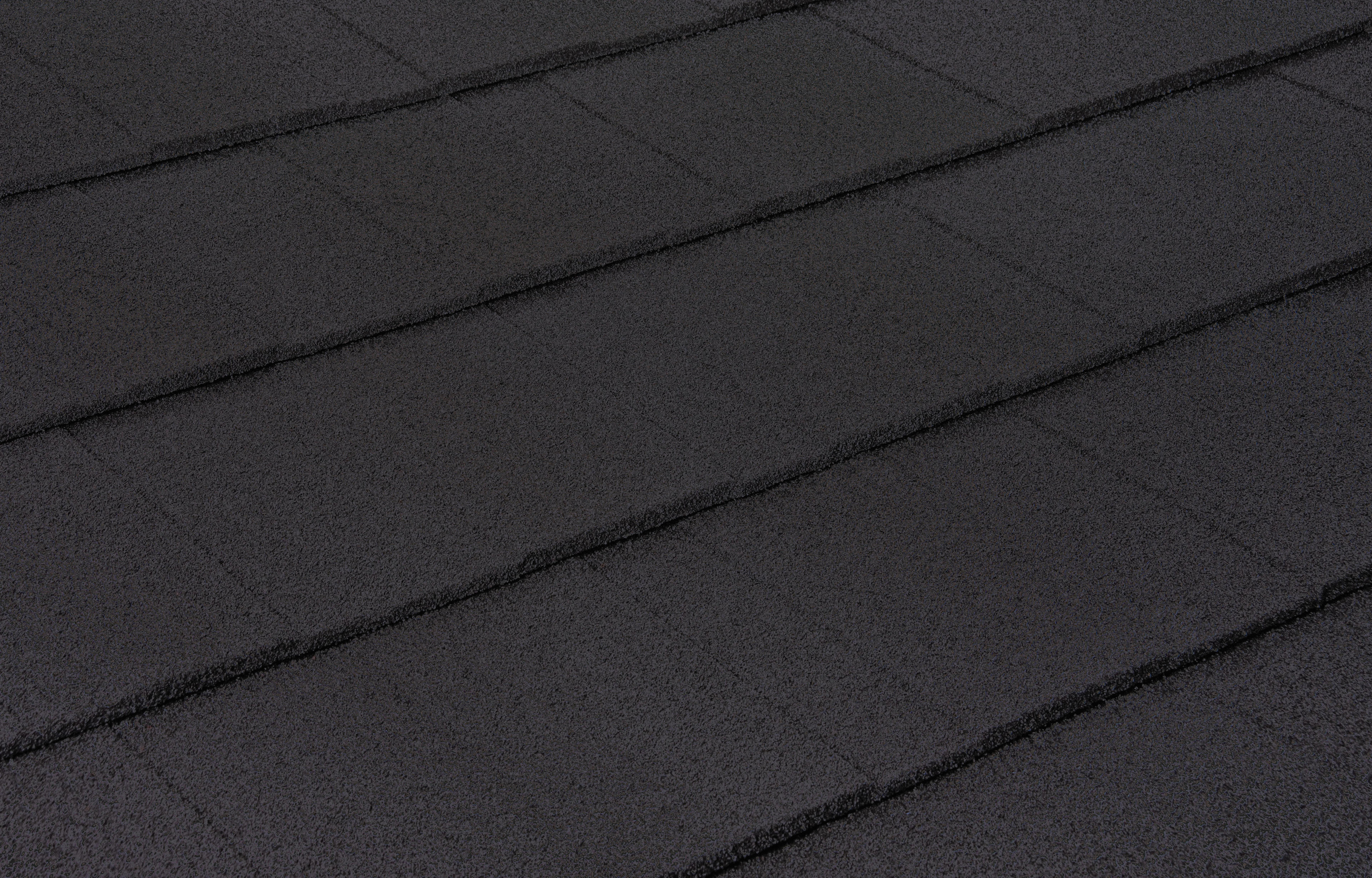

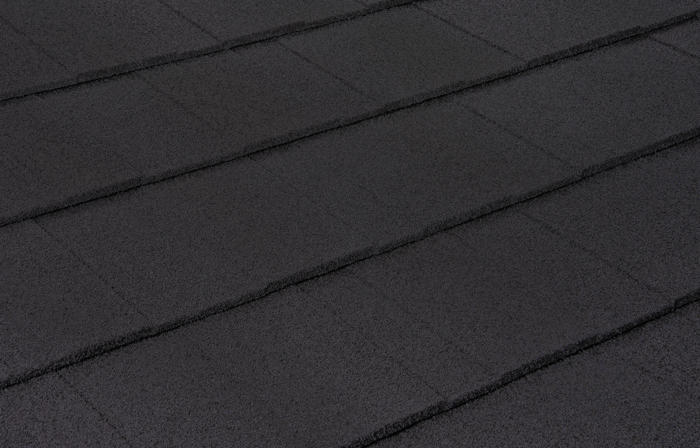

Charcoal
-

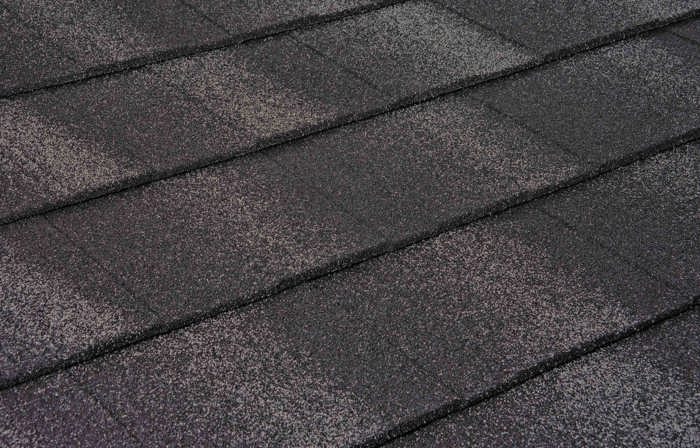

Mesquite
-

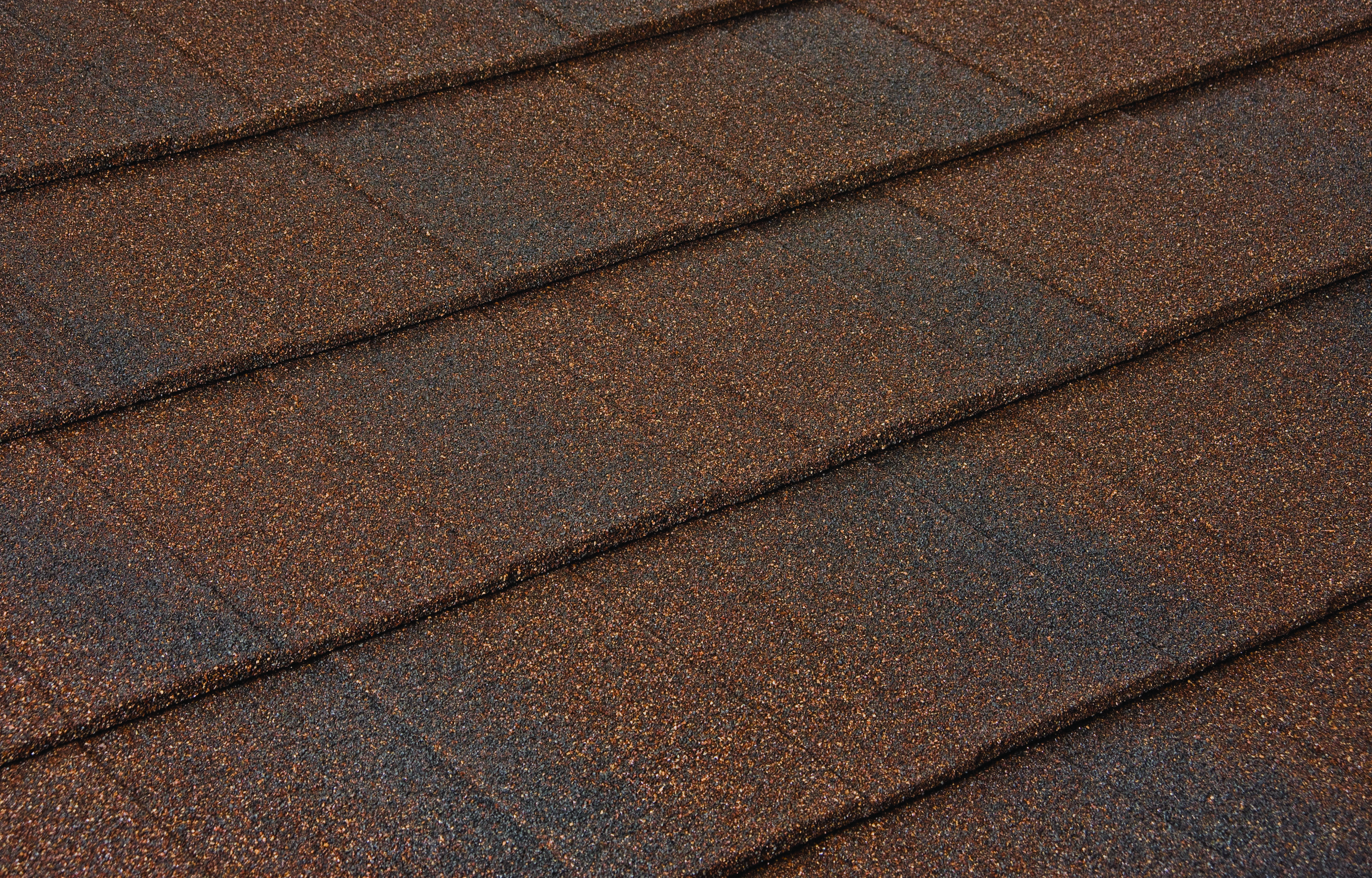

Walnut
-

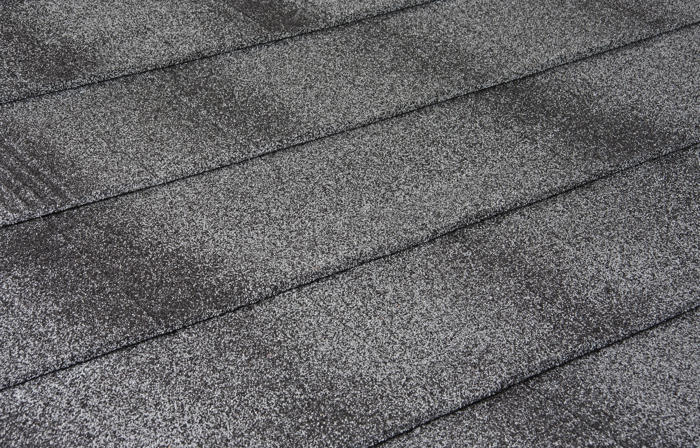

Ashwood
*Colours are as close to the actual products as possible. There may be slight variations due to screen settings.
Product Specifications
- Overall Length
- 1340 mm
- Length of Cover
- 1250 mm
- Width of Cover
- 255 mm
- Tiles / m2
- 3.20
- Weight / Tile
- 2.0 Kg
- Weight / m2
- 6.40
- Minimum Roof Pitch
- 15 degrees
Technical documents
-
CF Slate - Eaves Detail - Batten Layout -
CF Slate - Change of Pitch Detail - Battens -
CF Slate - Change of Pitch with Shortcourse Detail - Battens
-
CF Slate - Valley Detail - Battens -
CF Slate - Hip Detail - Battens - View All Documents
Be inspired
Swipe to scroll. Pinch to zoom

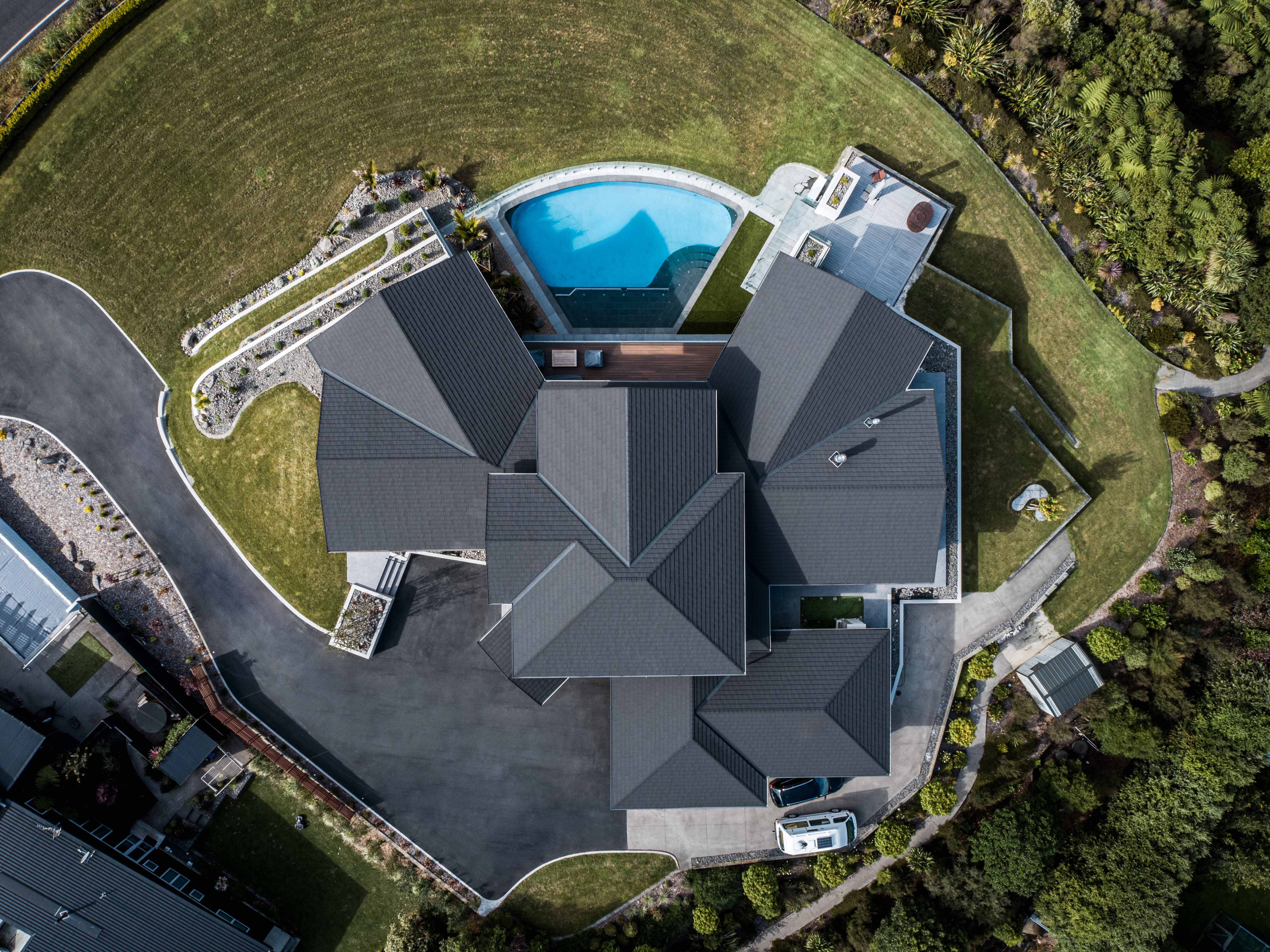

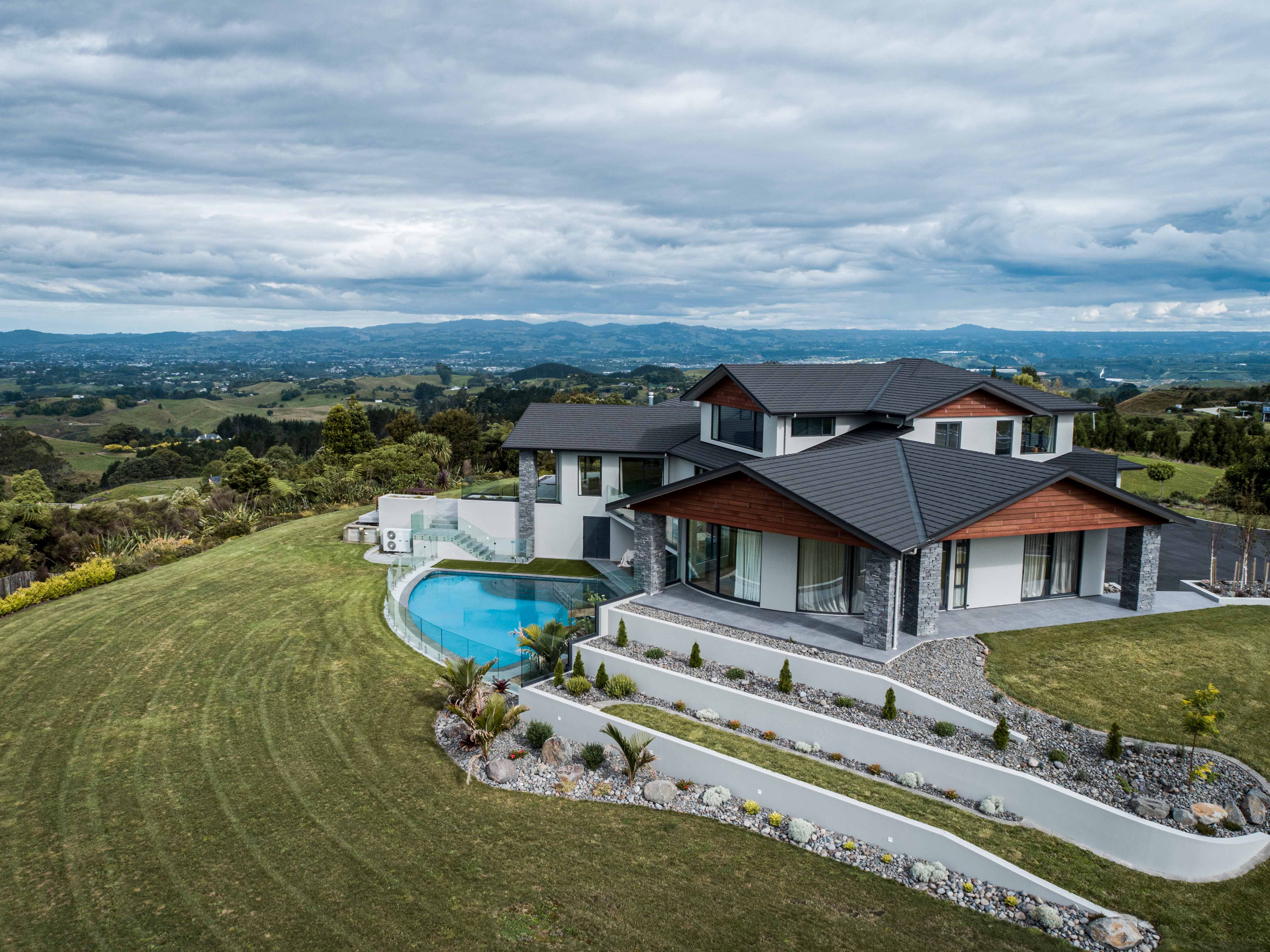

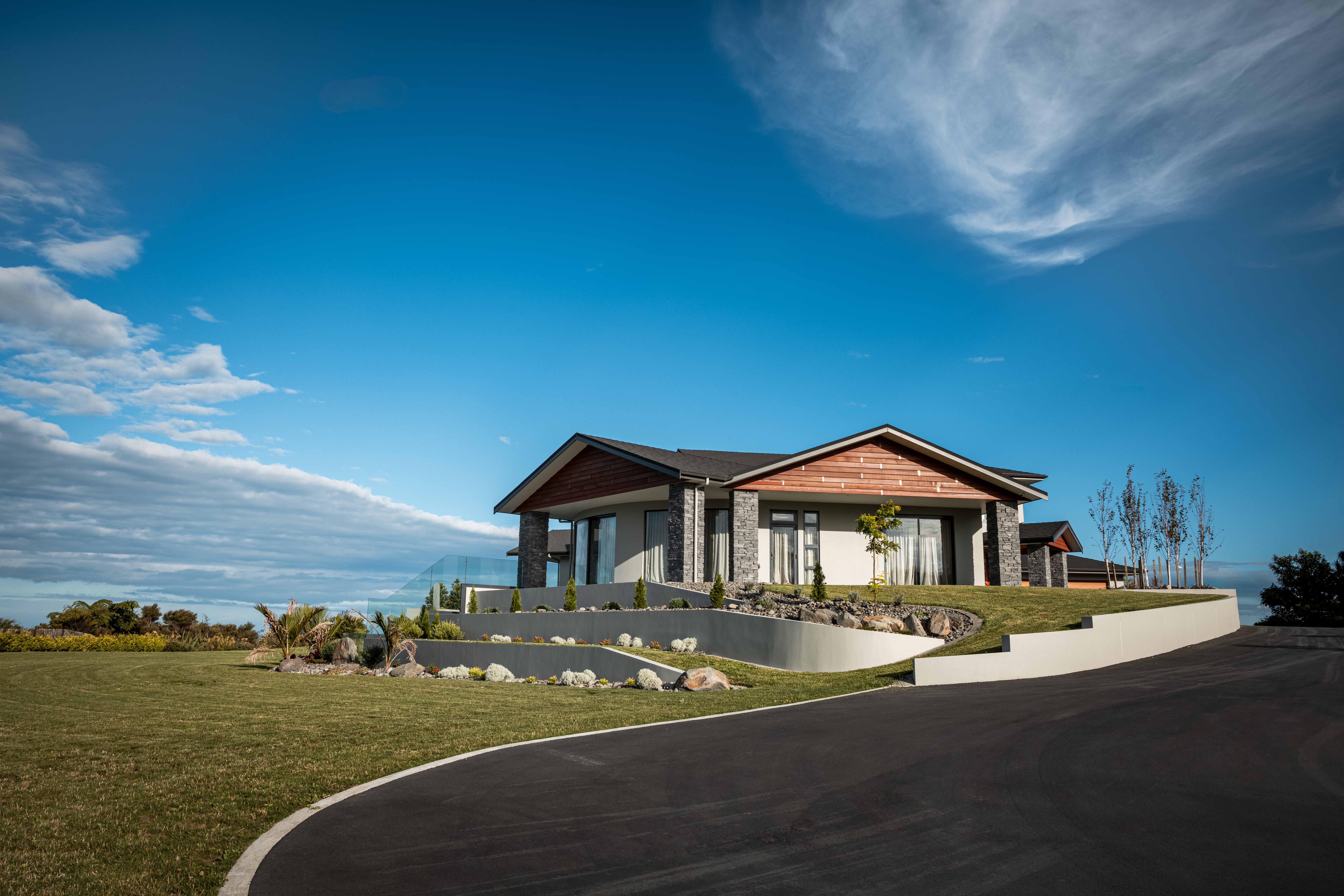

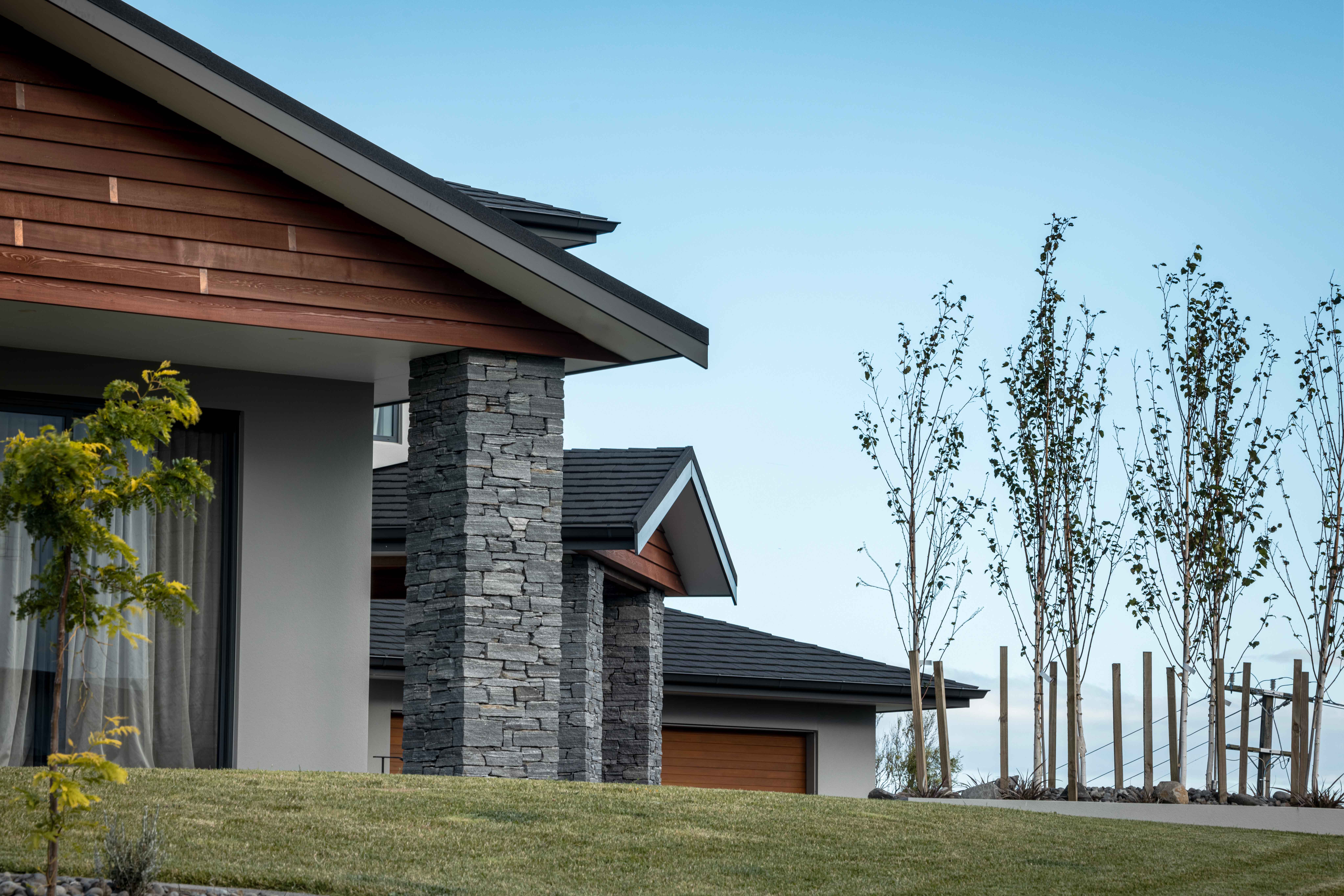

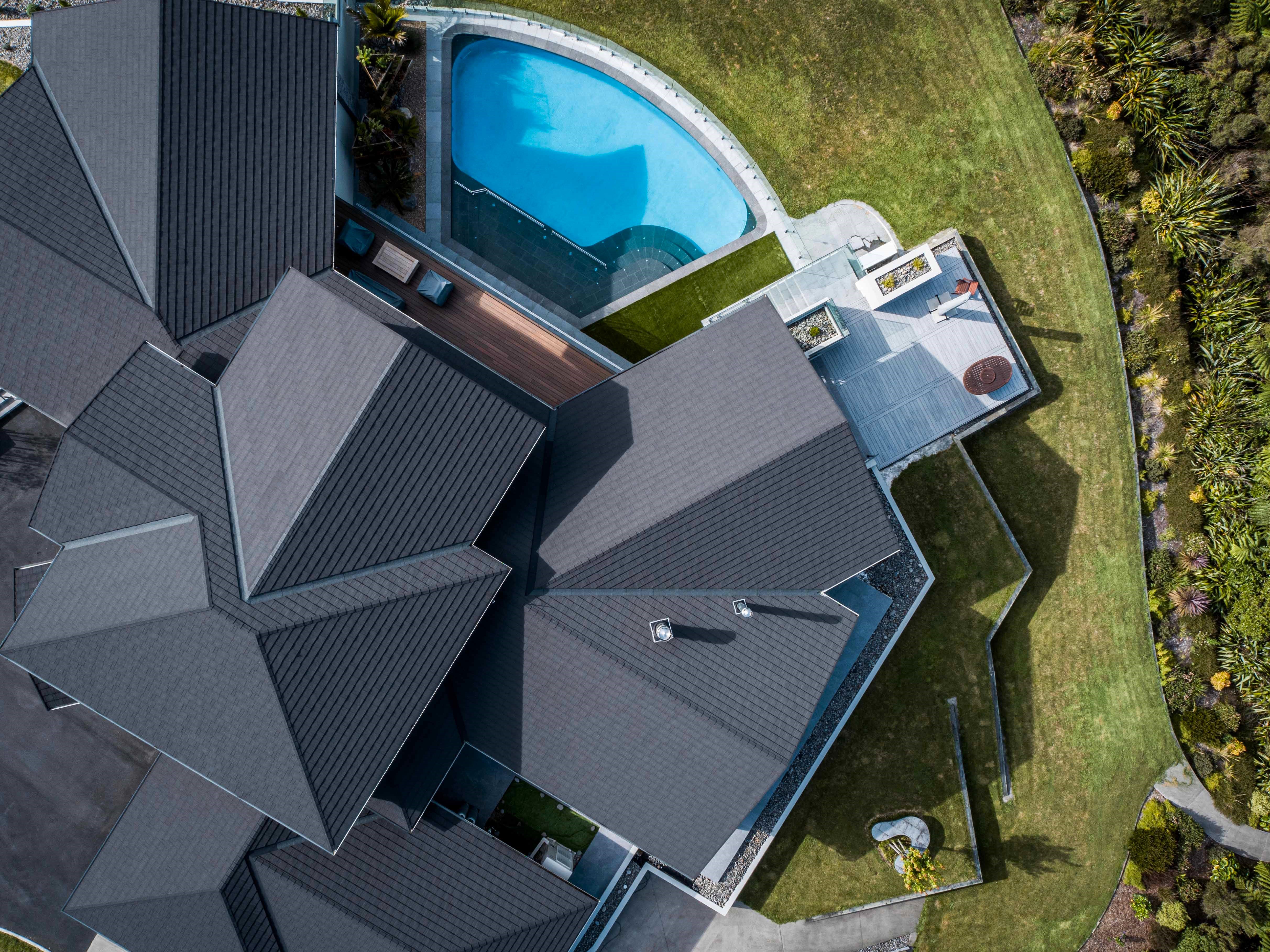

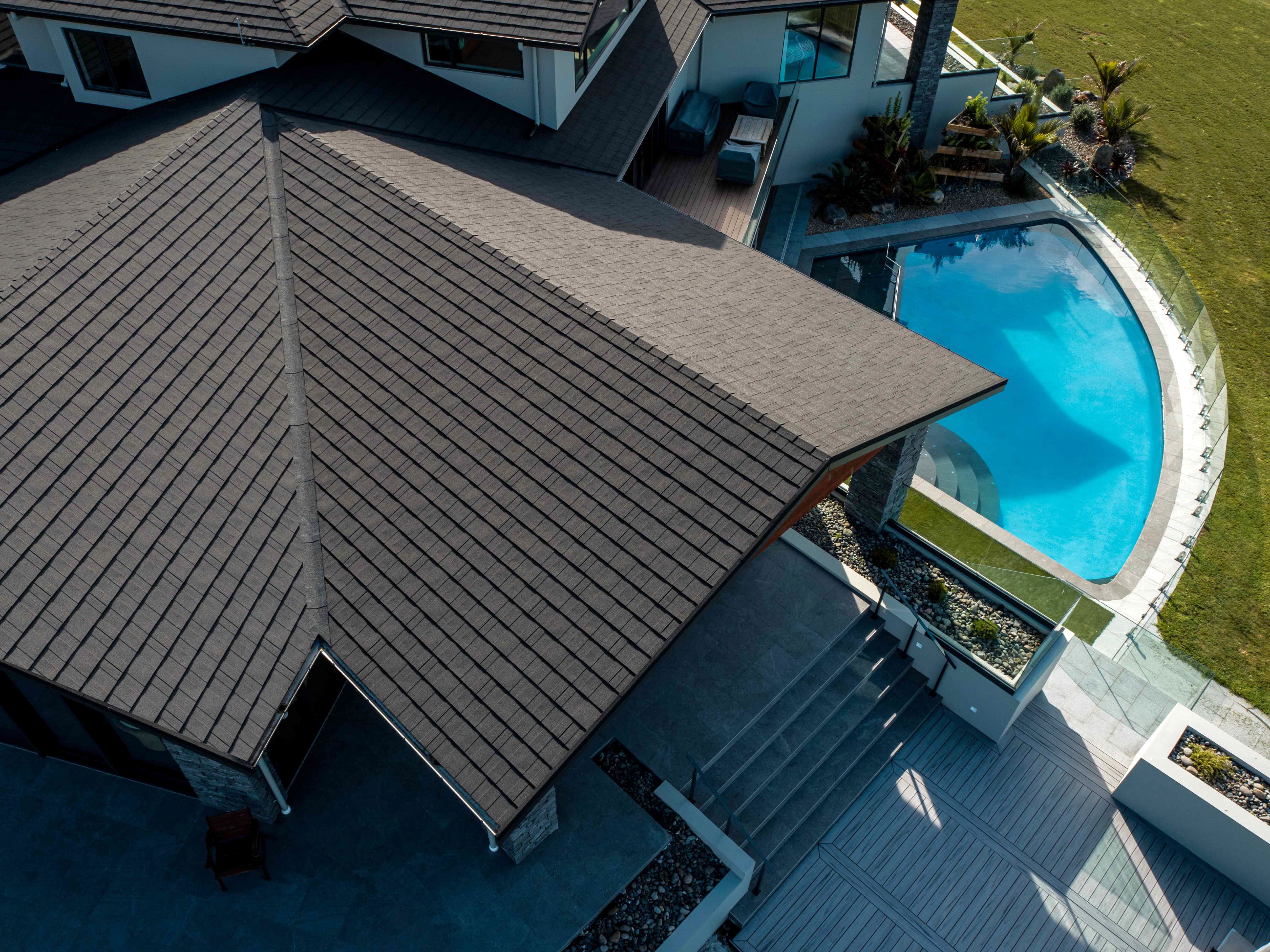

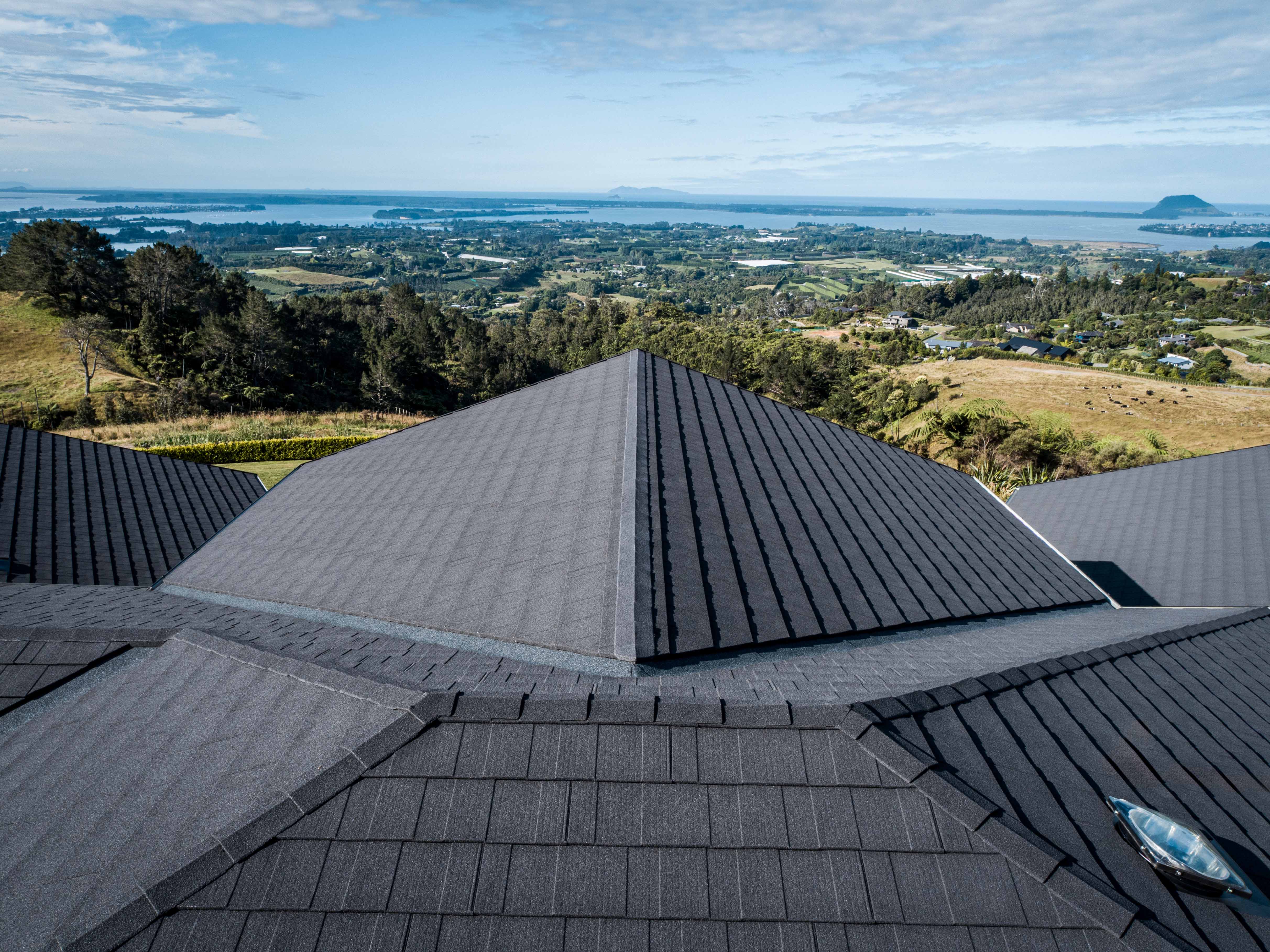

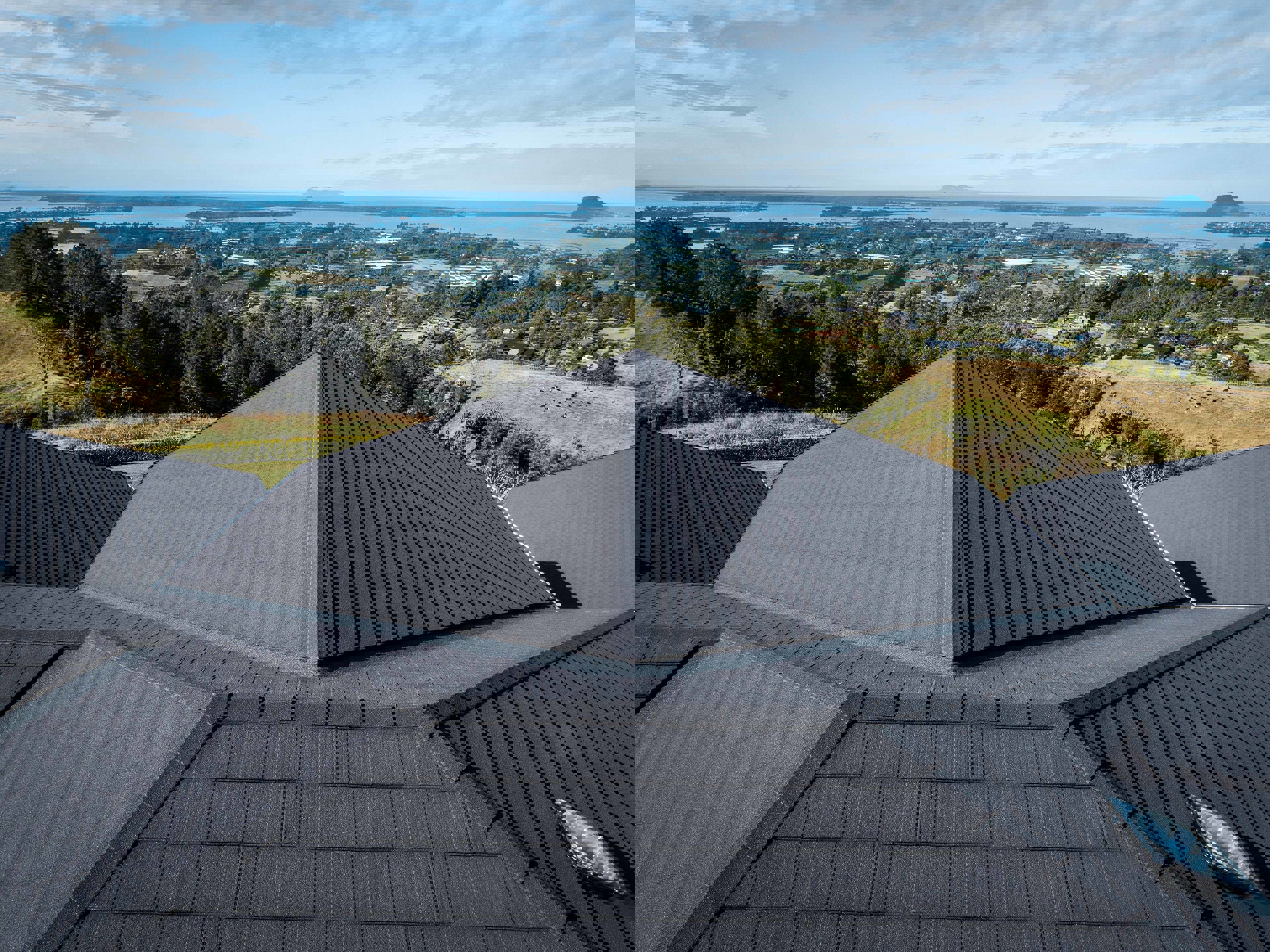

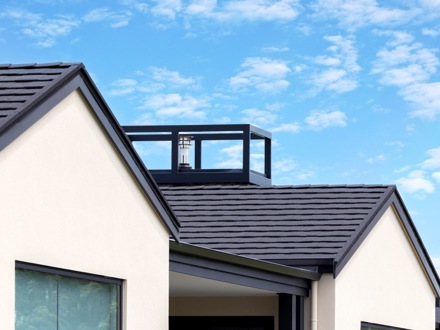

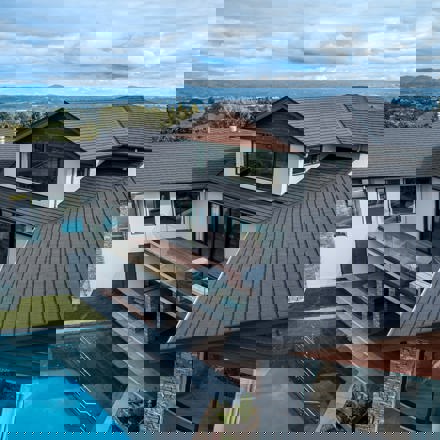

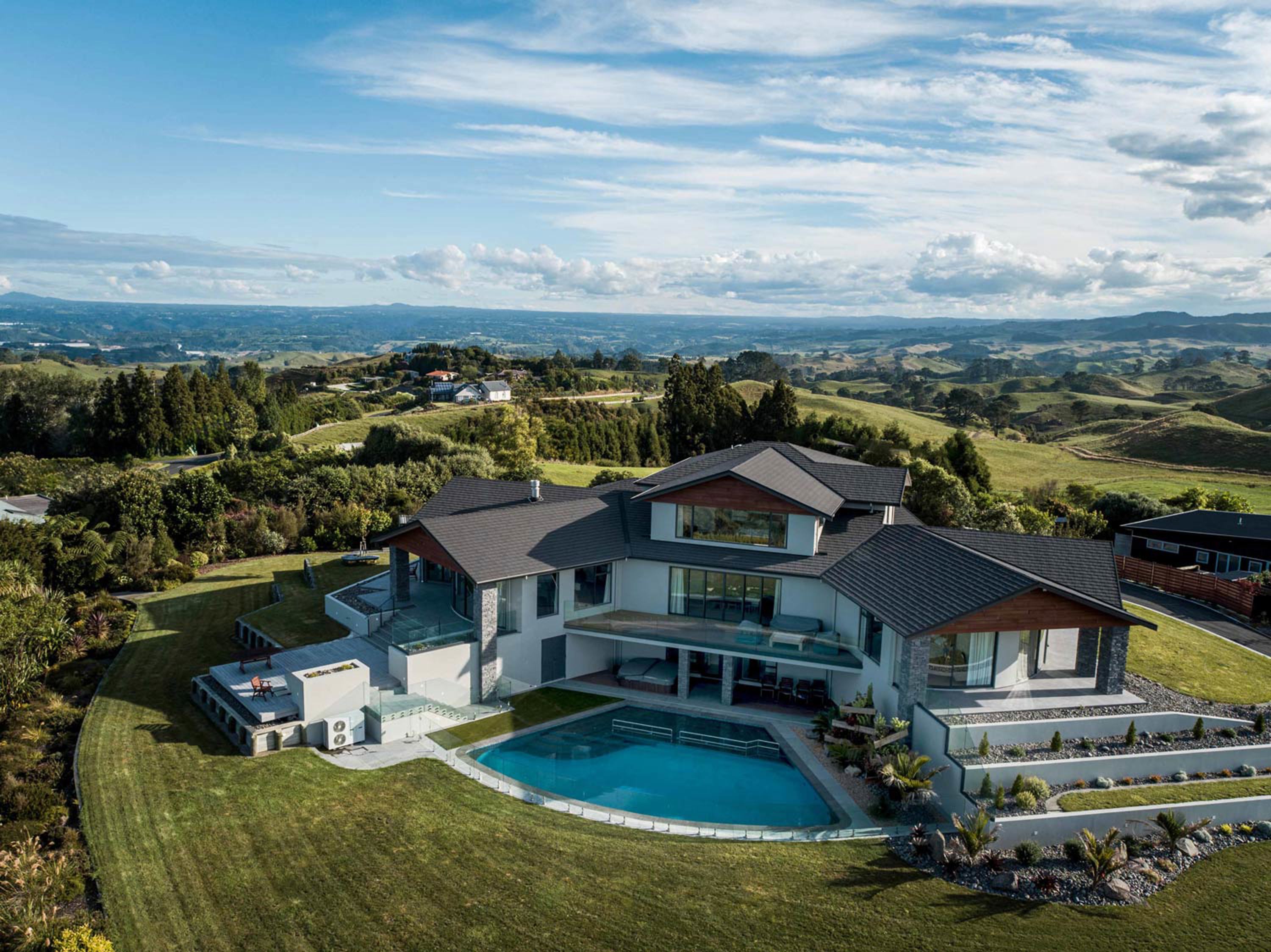

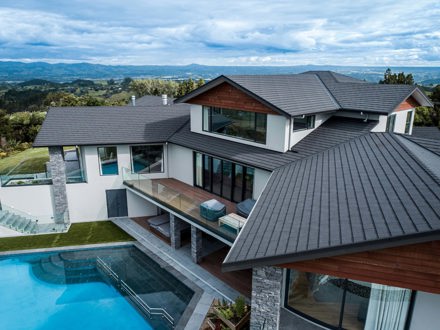

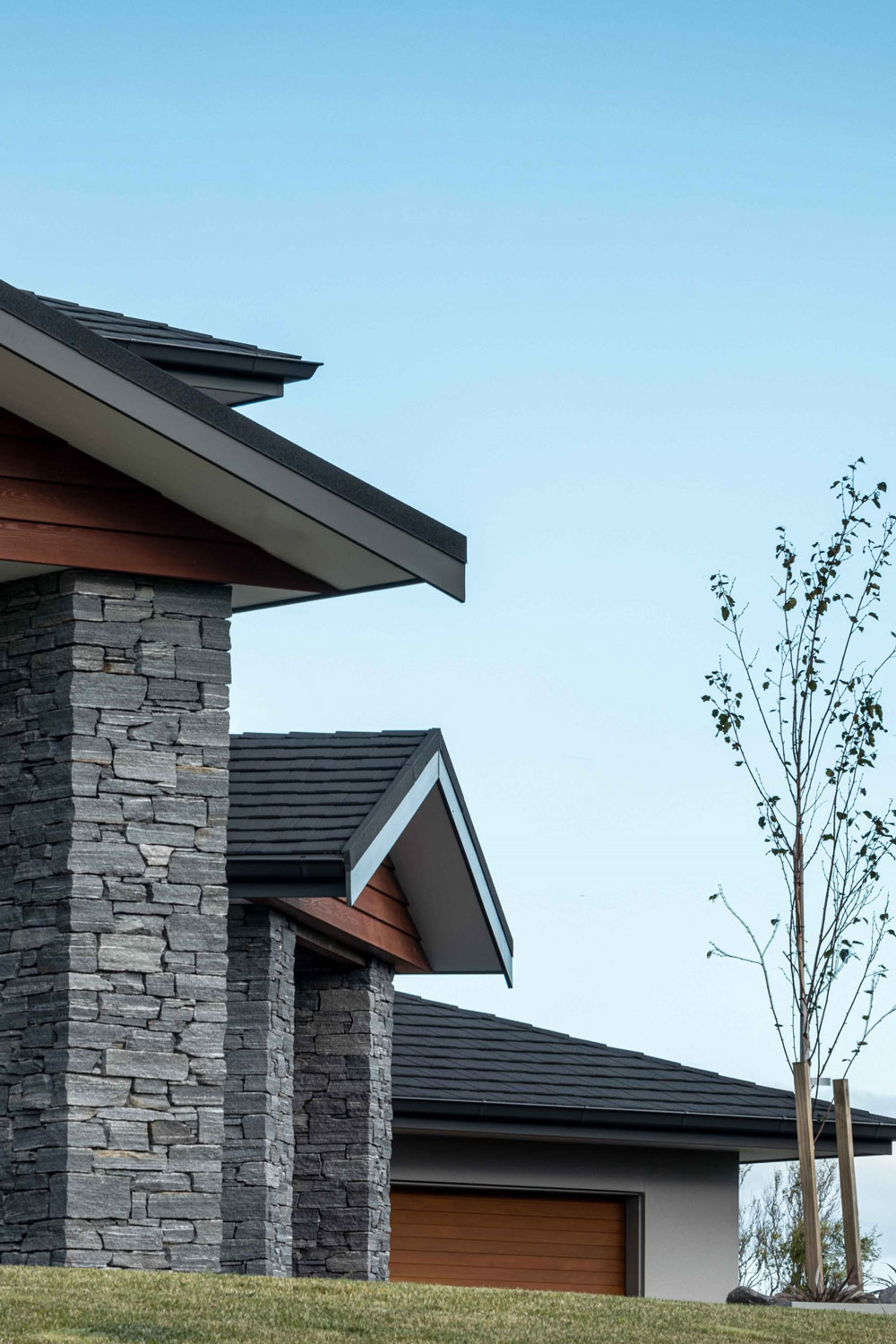

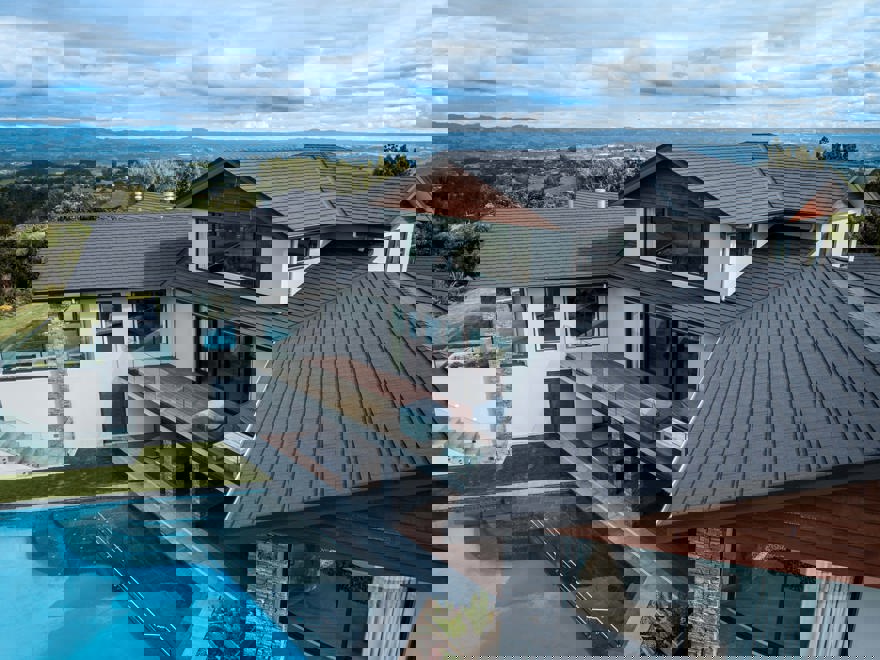

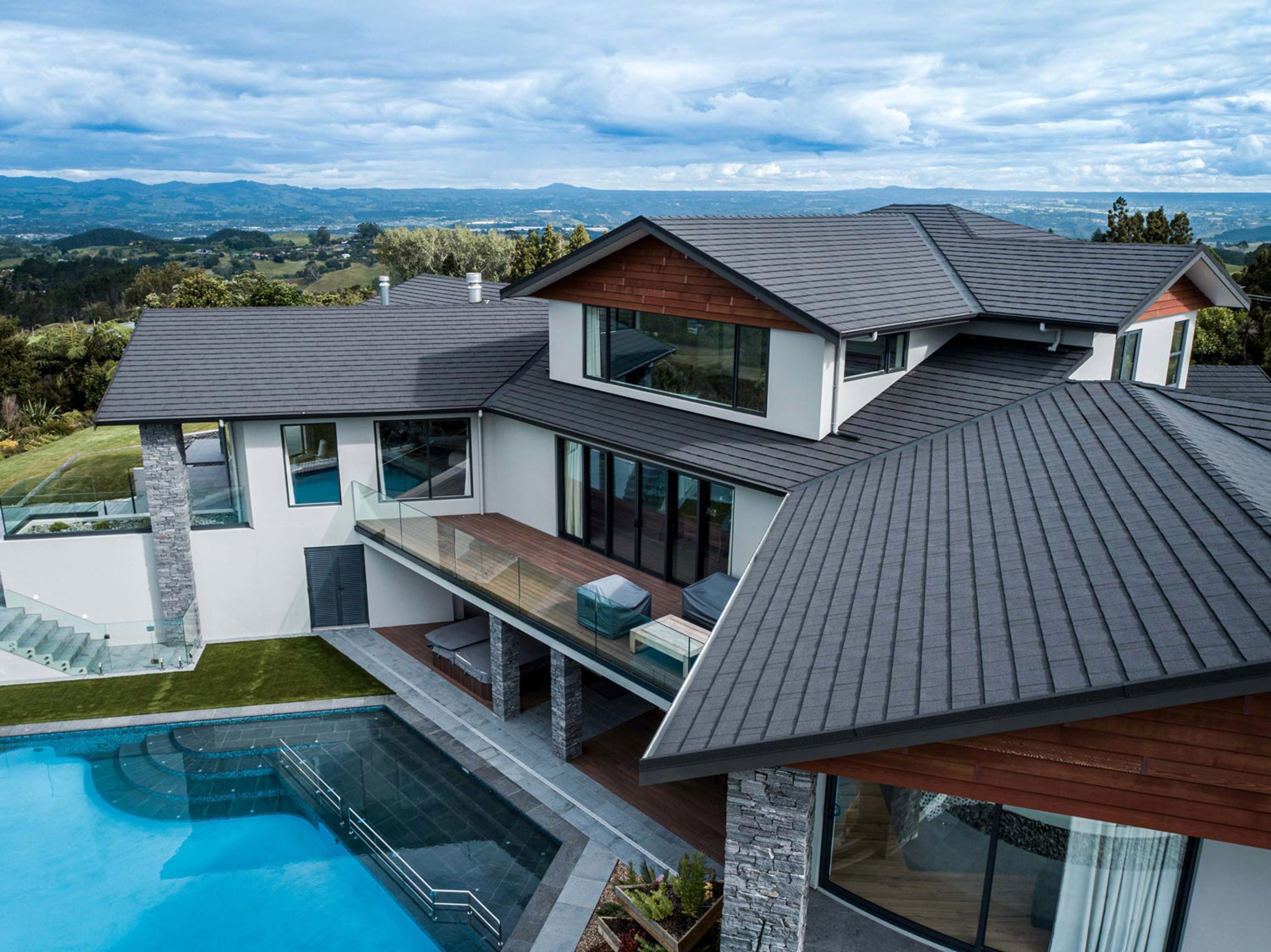

House on Minden Hill
